| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Knitting | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 9 |
| DIN EN 1049 | Weft: | Threads/cm | 9 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 90 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 610 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 1200 |
| Weft: | N/5cm | 900 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 240 |
| Weft: | N | 200 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 100 | |
| 11 | Adhesion (Welding) | Kg/5cm | 10 |

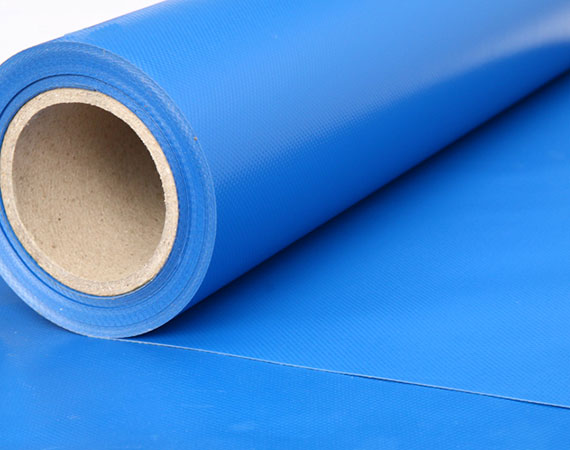

With acrylic or PVDF lacquering, our PVC tarp can use for more than 10 years with proper use.
Chinee Tarpaulin's PVC tarp follows NFPA701, DIN4102 B1 and M1 standard. It will extinguish immediately after leaving the fire.
Chinee Tarpaulin's tent tarpaulin is knife coated tarpaulin, it is very smooth on both side, and lacquered with acrylic. So it is easy to clean.
The working temperature of our PVC tarp is -30℃ to 70℃.
