| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Panama | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 30 |
| DIN EN 1049 | Weft: | Threads/cm | 30 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 260 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 900 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 4000 |
| Weft: | N/5cm | 3800 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 450 |
| Weft: | N | 430 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 120 | |
| 11 | Adhesion (Welding) | Kg/5cm | 12 |

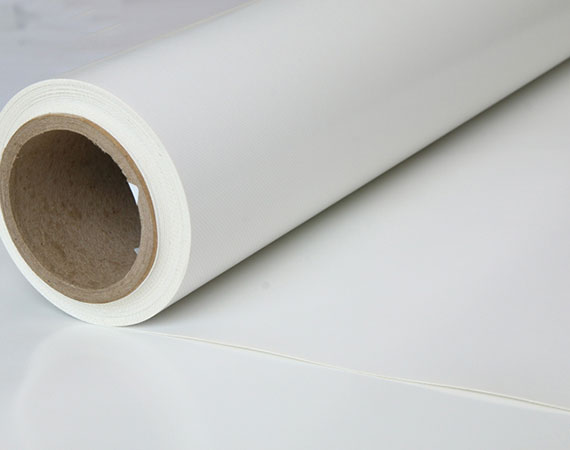

We use 1000D x 1000D 30 x 30 panama woven polyester fabric to make the side curtain tarpaulin. It make the tarpaulin has extremely high strength.
Our tarpaulin for side curtain is available for screen printing or digital printing.
For 900gsm side curtain tarpaulin, we have various colors in warehouse for customers to choose.
Yes, our side curtain tarpaulin is lacquered with acrylic on top side. If you need both side lacquered, we can also produce for you.
